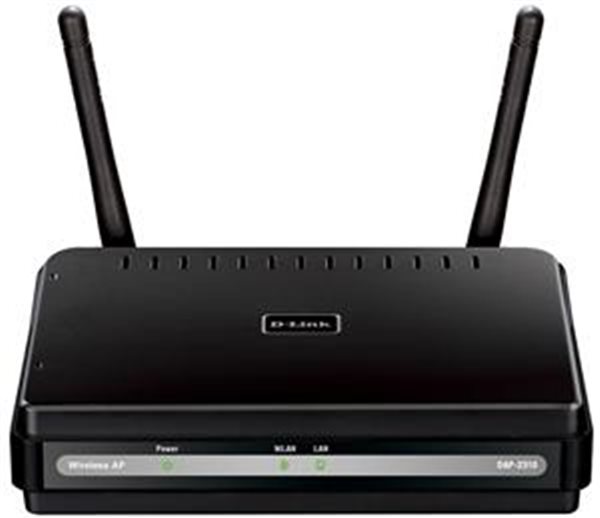

D-Link DAP-2310 Wireless N Access Point

D-Link DAP-2310 Wireless N Access Point

OVERVIEW
D-Link’s DAP-2310 is an 802.11n Access Point ideal for any network administrator to create or expand the capacity of a wireless network. This Access Point is mainly used in high traffic areas such as airports, coffee shops, shopping centers, sporting venues, and university campus deployments. With transfer rates of up to 300 Mbps in the 2.4 GHz frequency range, users are able to connect with legacy 802.11b/g adapters in addition to the latest 802.11n adapters to enjoy faster downloads and instant communication.

SPECIFICATIONS
Standards
• IEEE 802.11n
• IEEE 802.11g
• IEEE 802.3ab
• IEEE 802.3u
• IEEE 802.3

Management
• Telnet - Secure (SSH) Telnet
• Web Browser Interface
• HTTP - Secure HTTP (HTTPS)
• SNMP Support
• D-View Module - Private MIB
• AP Manager II
• AP Array

Security
• WPA™ - Personal
• WPA2™ - Enterprise
• WPA2™ - Personal
• WPA2™ - Enterprise
• 64/128-bit WEP
• SSID Broadcast Disable
• MAC Address Access Control
• Rogue AP Detection

VLAN
• 802.1q VLAN support

SSID Support
• Multiple (up to 8 SSID)

Quality of Service (QoS)
• 4 Priority Queues
• WMM Wireless Priority

Wireless Frequency Range
• 2.4 GHz to 2.4835 GHz

Operating Modes
• Access Point (AP)
• WDS with AP
• WDS/Bridge (No AP Broadcast)
• Wireless Client

Dipole Antenna Gain
• 2 dBi @ 2.4 GHz

Maximum Transmit Output Power
• FCC : 25 dBm / ETSI : 17 dBm (Dual Chain)

LEDs
• Power
• LAN
• WLAN

Maximum Power Consumption
• 8 watts

Power Supply
• 5 V/2 A

Temperature
• Operating: 0 to 40 °C
• Storage: -20 to 65 °C

Humidity
• Operating: 10% to 90% (Non-condensing)
• Storage: 5% to 95% (Non-condensing)

Certifications
• FCC Class B
• CE
• WiFi®

Weight
• 238 g

Dimensions (W x H x L)
• 148 x 28 x 111 mm
